Name: Z-15026008 AirPower AP5 LS Threaded Insert Tool
Brand: Airpower
SKU: Z-15026008
Price: 3413.33 CAD
Availability: InStock

Liquid error (snippets/image-element line 113): invalid url input

$3,413.33

Shipping calculated at checkout.

Quantity

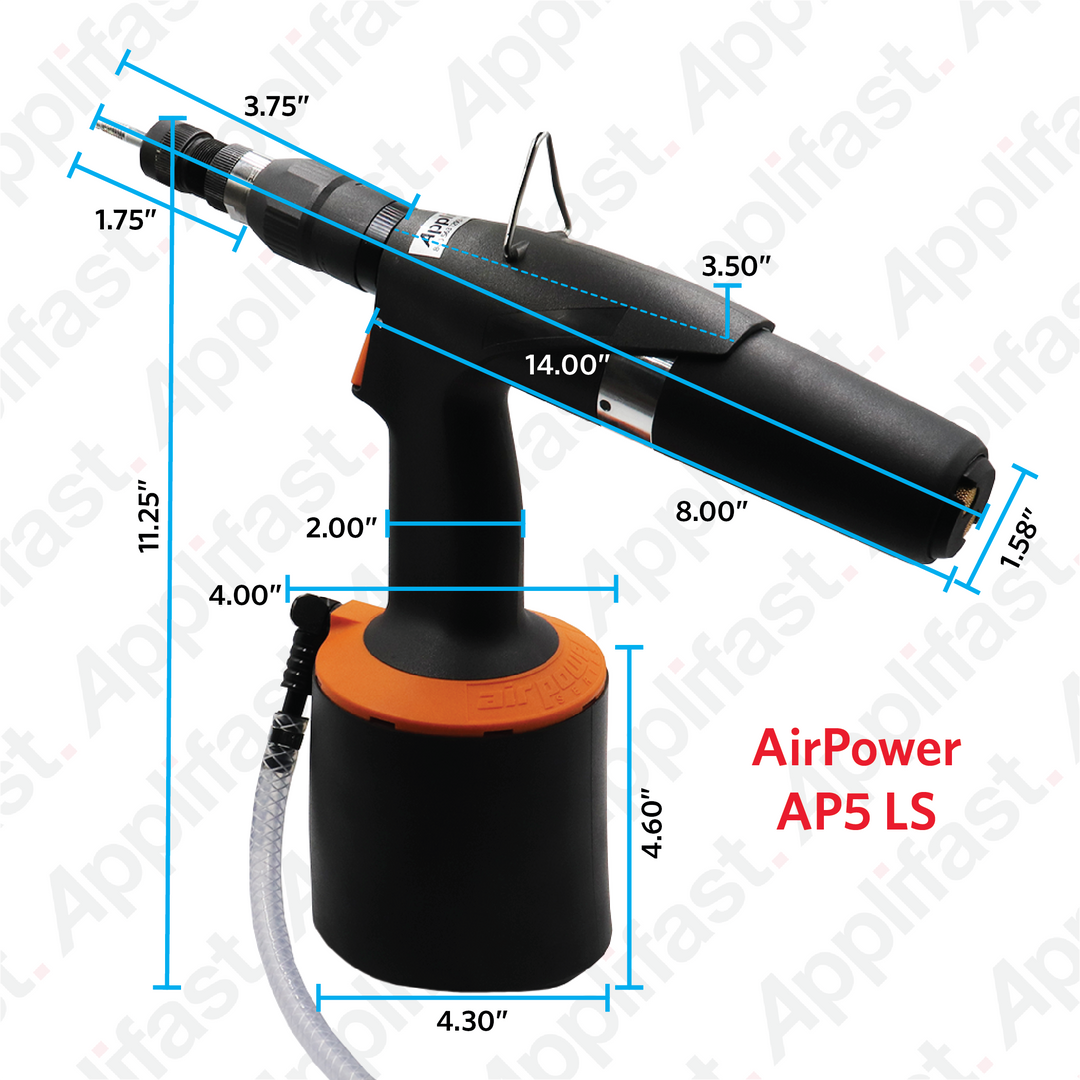

The AirPower AP5 LS is a pneudraulic long stroke threaded insert installation tool designed with a revolutionary 15.5 mm stroke length to install slotted body inserts.

Specifications:

Capacity: Metric Sizes: M6 - 10; SAE Sizes: 1/4"-20 - 3/8"-16
Weight: 2.7 Kg (5.95 Lbs.)
Stroke: 9.5 - 15.5 mm (0.37" - 0.61")
Pressure Required: 5 - 7 Bar (80 - 100 PSI)
Traction Power (6 Bar): 15.8 kN (3,552 Lbf.)
Mandrels Available: Metric Sizes: M6, M8, M10; SAE Sizes: 1/4"-20, 5/16"-18, 3/8"-16

Mandrels and anvils for the AirPower AP5 LS Threaded Insert Tool are sold separately.

Part Number	Description
S-1500244	1/4"-20 Anvil to suit AirPower 5 Long Stroke Tool MUST PURCHASE AIRPOWER 1/4"-20 MANDREL (D-1500172) WITH THIS ITEM
S-1500228	5/16"-18 Anvil to suit AirPower 5 Long Stroke Tool MUST PURCHASE AIRPOWER 5/16"-18 MANDREL (D-1500174) WITH THIS ITEM
S-1500226	M6 Anvil to suit AirPower 5 Long Stroke Tool MUST PURCHASE AIRPOWER M6 MANDREL (D-1500176) WITH THIS ITEM
S-1500228	M8 Anvil to suit AirPower 5 Long Stroke Tool MUST PURCHASE AIRPOWER M8 MANDREL (D-1500178) WITH THIS ITEM
